Description
The BRP Rubber Mounted SUB “Scotts Under Bar” Adapter uses (8) Poly-Urethane bushings to isolate vibration and reduce rider fatigue by softening the harsh spike of hitting square edge rocks and obstacles. NOW available with two different durometer bushings to fine tune the amount of vibration dampening.

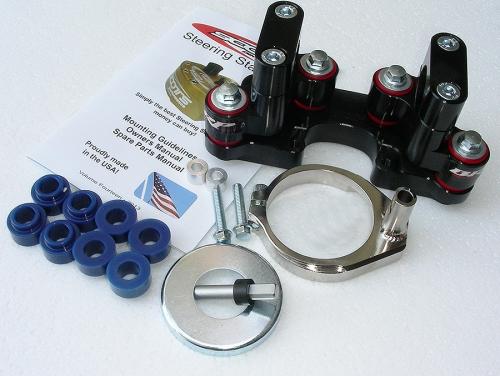

BRP RUBBER MOUNTED SUB KIT INCLUDES:
1) BRP Rubber Mounted SUB Adapter
1) Scotts Bolt on Tower (Frame Bracket)
2) Sets of Rubber Bushings -(Red = Medium and Blue = Soft.)
& All Necessary Hardware.
This SUB mount assembly is designed for those of you who have a Scotts stabilizer and would like to go sub mounted. Kit includes Sub adapter and necessary hardware.
Designed to mount a Scotts stabilizer below the handlebar using your OEM cast or billet triple clamp. The BRP Rubber Mounted SUB adapter mounts to the existing rear bar mount holes and allows you to run in position 3 which is the most common and popular position. SUB Mounting a stabilizer offers several benefits over a conventional “above bar” setup and is becoming a very popular setup for GP’s, motocross, off road, dual sport applications and riders of taller stature.
- Offers an approximately 1″ taller bar position
- Lower Bend Bars can be used to compensate for additional height.
- SUB Mounting reduces the risk of bodily injury
- Stabilizer is tucked away and protected from potential damage from a crash.
The Mount-Kit-Only includes everything except the stabilizer and link arm. This kit is designed to be used with the stock triple clamp and oversize handlebars.
This unit cannot be used with Cycra center reach mount handguards.
Part No.:
DM-901217-27 and DS-901217-27
DM-SUB-5927-01R and DS-DM-SUB-5927-01R
Part Numbers:
Option name | Mfg. Part No. | SKU | Stock |
Mount Kit Only | DM-901217-27 | BRP-DM-901217-27 | In stock |
Mount kit and damper | DS-901217-28 | BRP-DS-901217-28 | In stock |
