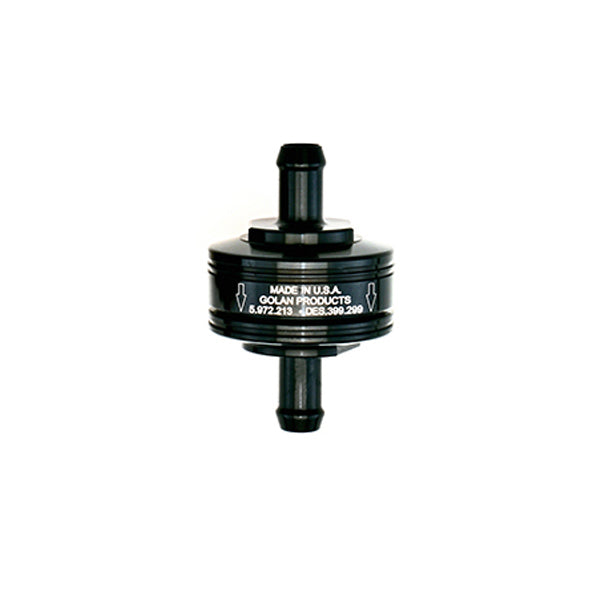

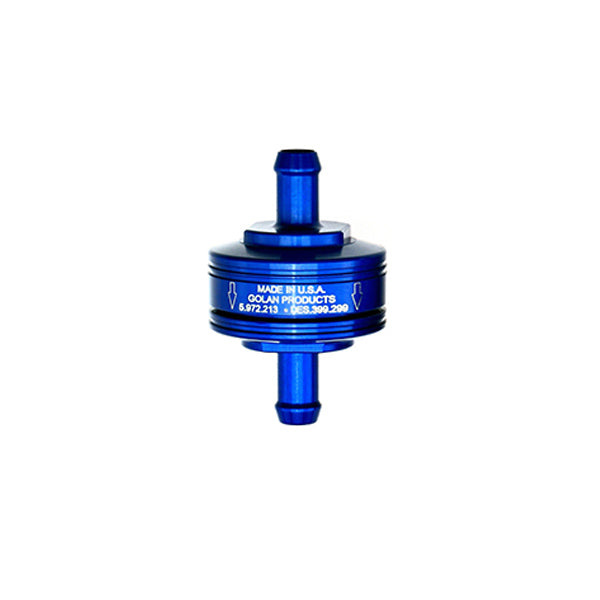

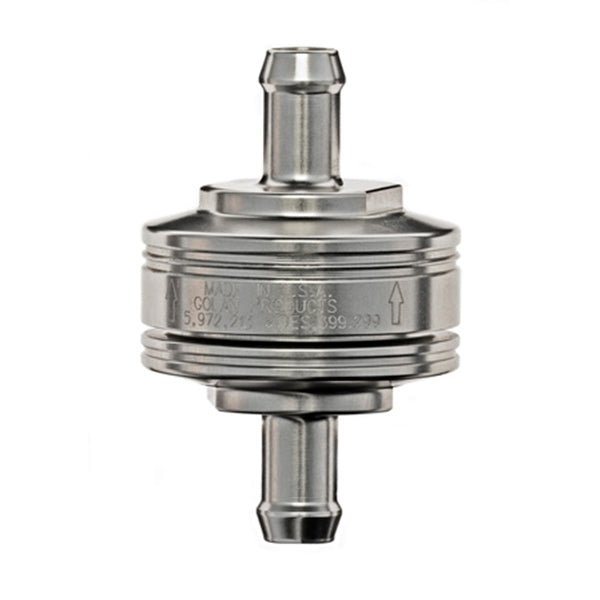

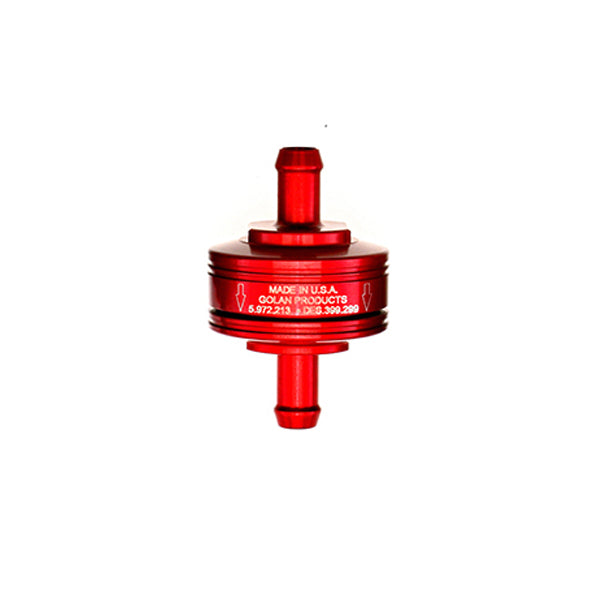

Golan - Super Mini Fuel Filter

High performance, superb flow filters. For those who appreciate quality, this filter will take you to a new level element: Designed and engineered for the aerospace industry, for rugged, high temperatures, and extreme filtration environments.

• Body Height: 0.875”
• Diameter: 1.375” Inches
• Filter Medium: 1.0” dia. 304 pleated SST
• Effective Filtering Area: 4.0” Square Inches
• Filter Efficiency: 10 Micron Operating Pressure 150 PSIG
• Flow Rate: (20 PSIG) 4 GPM Drop In Pressure (20 PSIG) 1.0%
• Weight: 1.0 OZ

Golan Products introduces their USA made, high performance, superior flow filters. Element: Designed and engineered for the aerospace industry, for rugged, high temperatures, and extreme filtration environments, made of pleated 304 stainless steel, 10 micron (.000392”), 1.000”(inch) Dia. Total of 4 square inches of effective filtration area, element provides a maximum flow of 6 gallons per minute simultaneously with no restriction. Element is washable, reusable indefinitely, cleaned easily with air or soluble rinse.

Machined on CNC from 6061 aluminum, buffed, polished, and show chrome plated. MINI filter length is 1.750”(less fittings), SUPER MINI filter length .875”(less fittings).
