ÖHLINS - Harley Davidson S36 Twin Shocks (HD 044) - Pair

HD 044 is our fully adjustable premium choice for top-shelf performance and adjustability.

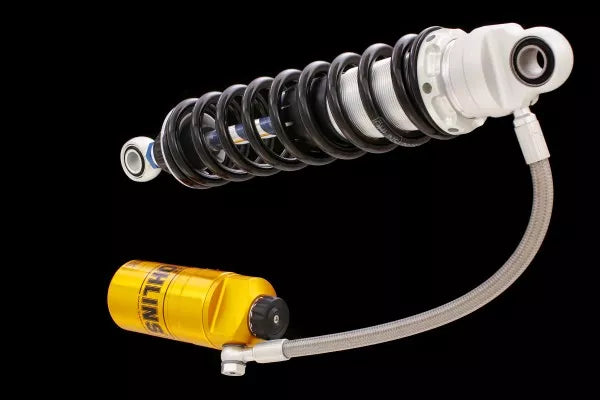

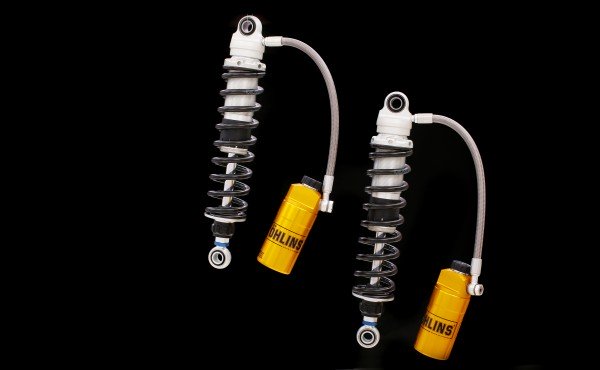

Designed for the FLH / FLT Bagger chassis, the HD 044 consists of a pair of STX36 hose-mounted-reservoir shocks featuring compression, rebound, length, and spring preload for endless tuneability. Ideal for riders looking for better performance in all aspects, traction, comfort and rider feel.

The HD 044 is the perfect solution for mainly 2-up riding or heavy payloads and it is fully adjustable for solo riders as well with great result.

Brackets are included.

Springs

Available with 3 spring options. You can use the Setup calculator available on Ohlins's site to find the best spring for your type of riding.

• 26Nm (Standard) - Suitable for majority of riders. For total rider + passenger + luggage weight of sub 550lbs
• 28Nm
• 30Nm

Technical specification

• Adjustable Rebound and Compression damping
• Monotube Shock with External Hose Reservoir
• Length Adjustable – ½”
• High Pressure Nitrogen Gas Charged
• STX Single Tube design
• 36mm Piston Diameter
• Adjustable Preload w/ Billet tool
• Multiple Spring Rates available to accommodate a wide range of riders
• Top Level Comfort, Rideability, and Performance
• Hard Anodized - Precision CNC-Machined Components
• Low-friction Shaft / Seal Head design
• Fully Serviceable and Repairable

Supporting Documents

• OHLINS HD 044 Mounting Instructions
• OHLINS HD 044 Spare Parts

Fitment

• 2014 + Harley-Davidson Electra Glide
• 2014 + Harley-Davidson Road Glide
• 2014 + Harley-Davidson Road King
• 2014 + Harley-Davidson Street Glide
• 2014 + Harley-Davidson Ultra Classic
